M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection

Brand Name : Cablein

Certification : CE, ROHS, TUV , ETL

Place of Origin : Shenzhen China

MOQ : 100PCS

Price : The price ranges from $1 to $4 USD per pieces

Payment Terms : T/T,Western Union

Supply Ability : Monthly output: 10,000 sets

Delivery Time : 5-8 Working Days

Packaging Details : High Quality export carton

Certifications : UL, CE, RoHS

Mating Style : Male and Female

Voltage : 450V

Connector Style : Straight

Cable Length : per your requirement

Type : Circular

Installation Style : AC/DC

Dustproof : 100% Dustproof

Contact Now

Waterproof Connector M25 2-Pin IP68 Easy Snap-Lock For Fast Installation
Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Rating:IP68

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Pin: 2

Datasheet
Parameter Specification
Product Name  Waterproof Connector M25 2-Pin IP68 Easy Snap-Lock For Fast Installation
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A Max
Operating Voltage 450V Max
Ingress Protection (IP) Rating IP67 /IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Advantages
  1. Effortless Snap-Lock Connection
  2. IP68 Rating for Ultimate Water & Dust Protection
  3. Robust M25 Design for Harsh Environments
  4. Secure and Vibration-Resistant Link

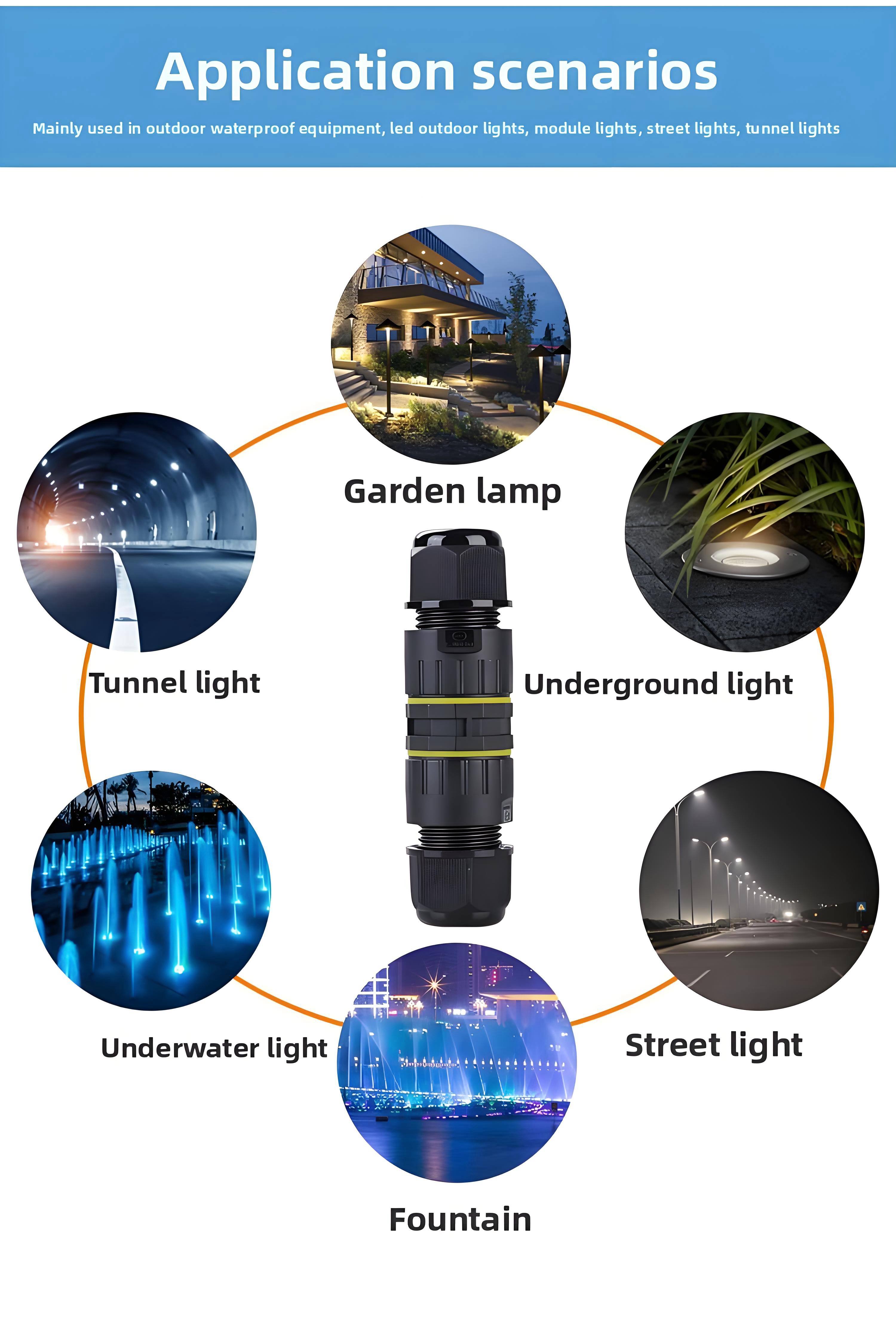

Product Images
M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection M25 Waterproof Circular Connector 2-Pin IP68 Rated 450V with 100% Dustproof Protection
FAQ
Q1: How does the easy snap-lock mechanism work?
Simply push the connector halves together until you hear or feel a distinct click. This indicates a secure, waterproof seal is achieved—no tools or twisting needed.
Q2: Is it truly waterproof, and in what conditions?
Yes, with its IP68 rating, it is completely protected against dust and can be continuously submerged in water under specified conditions, making it ideal for outdoor, industrial, or washdown environments.
Q3: What is the operating temperature range?
The connector is designed to perform reliably in a wide temperature range, typically from -25°C to +85°C, ensuring stability in both hot and cold settings.
